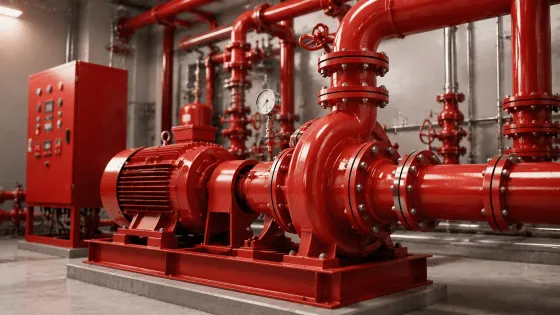

1. Introduction and Fundamental Role

A centrifugal fire pump is a stationary pump specifically designed, manufactured, and tested to deliver water or foam solution at the flow rates and pressures required by fire protection systems. Unlike general industrial pumps, fire pumps are subject to stringent listing and approval requirements by recognized testing laboratories, and their installation, operation, and maintenance are governed by NFPA 20, Standard for the Installation of Stationary Pumps for Fire Protection.

The fundamental purpose of a fire pump is to augment the water supply pressure when the available source pressure is insufficient to meet the hydraulic demands of sprinkler systems, standpipe systems, or hose streams. When a fire protection system activates, waterflow causes a pressure drop that is sensed by the pump controller, which automatically starts the pump to restore and maintain adequate pressure.

2. Centrifugal Pump Operating Principles

A centrifugal fire pump converts the mechanical energy of a rotating impeller into hydraulic energy. Fluid enters the impeller eye axially, is accelerated radially by the curved impeller vanes, and is discharged into the volute casing at high velocity. The volute's expanding cross-section converts kinetic energy into pressure energy.

The theoretical head developed by a centrifugal pump is described by Euler's pump equation:

H_theoretical = (u₂ · c_u2 - u₁ · c_u1) / g

Where:

• u₂ = Peripheral velocity at impeller outlet (ft/s)
• c_u2 = Tangential component of absolute velocity at outlet (ft/s)
• u₁ = Peripheral velocity at impeller inlet (ft/s)
• c_u1 = Tangential component of absolute velocity at inlet (ft/s)
• g = Gravitational acceleration (32.2 ft/s²)

In practice, hydraulic losses (friction, shock, and recirculation) reduce the actual head to:

H_actual = η_h · H_theoretical

Where η_h is the hydraulic efficiency, typically 80–90% for well-designed fire pumps.

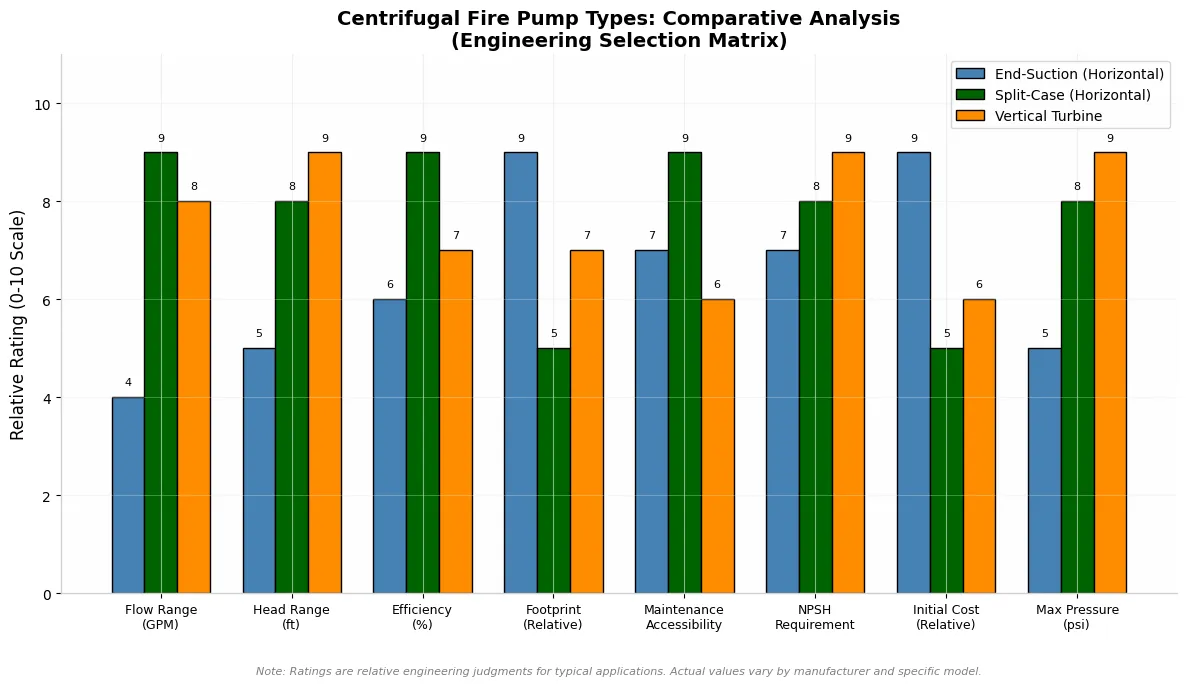

3. Types of Centrifugal Fire Pumps

Three principal configurations dominate fire protection applications, each with distinct hydraulic and spatial characteristics.

3.1 Horizontal End-Suction Pumps

In an end-suction pump, fluid enters axially at one end of the impeller and exits radially through a volute casing. The impeller is typically single-suction, overhung on the shaft (supported by bearings on one side only).

End-suction pumps are ideal for small to medium commercial buildings, limited pump room spaces, and retrofit applications where floor area is constrained.

3.2 Horizontal Split-Case Pumps

The split-case design features a casing that is split horizontally along the shaft centerline. The impeller is double-suction, drawing fluid from both sides simultaneously, which balances axial thrust forces. Bearings support the shaft on both sides.

Split-case pumps are the dominant choice for large commercial, industrial, and municipal fire protection systems due to their high efficiency, long service life, and ease of maintenance.

3.3 Vertical Turbine Pumps

Vertical turbine pumps feature a vertical shaft with multiple impeller stages (bowls) submerged in the water source. The motor is mounted above the discharge head, driving the shaft through column piping.

Vertical turbine pumps are essential when the water source is below grade (underground tanks, reservoirs, wells) or when pump room floor space is severely limited.

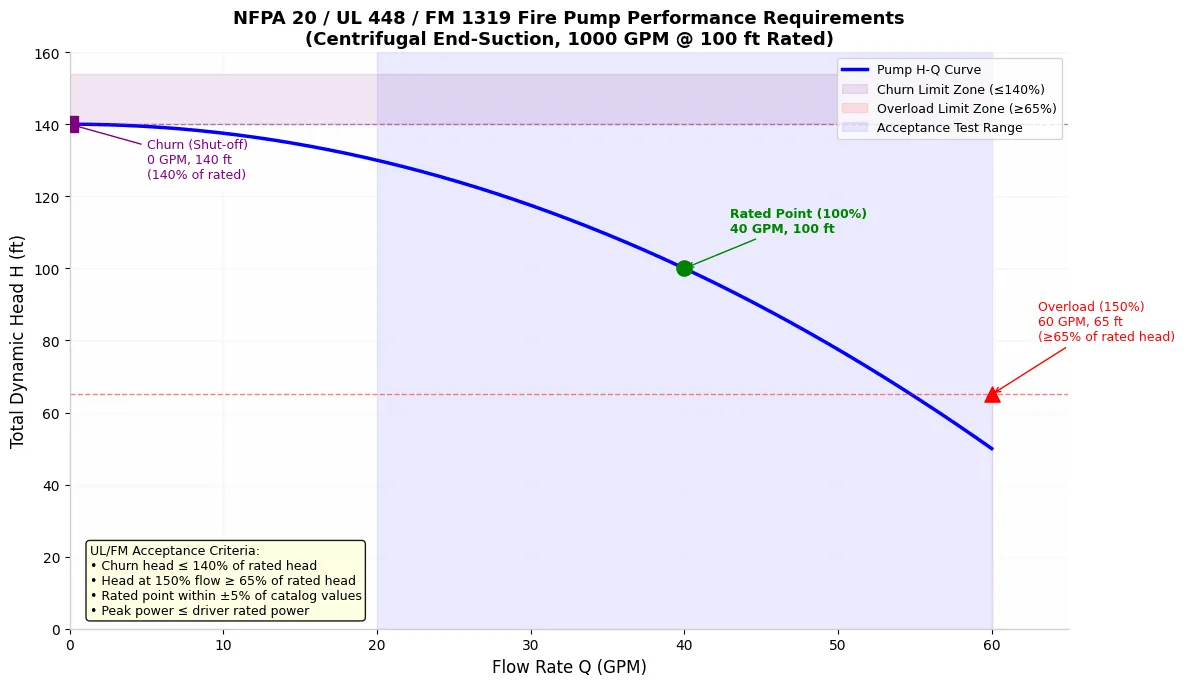

4. Performance Requirements and Acceptance Criteria

Fire pumps must meet strict performance criteria established by UL 448, FM 1319, and ANSI/HI 14.6. These standards ensure that pumps perform reliably under both normal and overload conditions.

4.1 The Three Critical Test Points

4.2 Mathematical Verification

For a pump rated at 1,000 GPM at 100 ft head:

Churn head limit:
H_churn,max = 1.40 × 100 = 140 ft

Overload head minimum:
H_150%,min = 0.65 × 100 = 65 ft

Overload flow:
Q_150% = 1.50 × 1000 = 1500 GPM

The pump must deliver at least 65 ft of head when flowing 1,500 GPM. If the measured head at 1,500 GPM is 60 ft, the pump fails acceptance.

4.3 Power Requirements

The driver (motor or engine) must be capable of delivering the peak power required by the pump. For centrifugal pumps, peak power typically occurs at or near 150% of rated flow:

P_peak = (Q_150% × H_150% × SG) / (3960 × η_pump)

For the example pump at 1,500 GPM and 65 ft, assuming 75% pump efficiency:
P_peak = (1500 × 65 × 1.0) / (3960 × 0.75) = 32.8 HP

NFPA 20 requires the driver to be rated for at least this peak power. For diesel engines, an additional 15% service factor is typically applied.

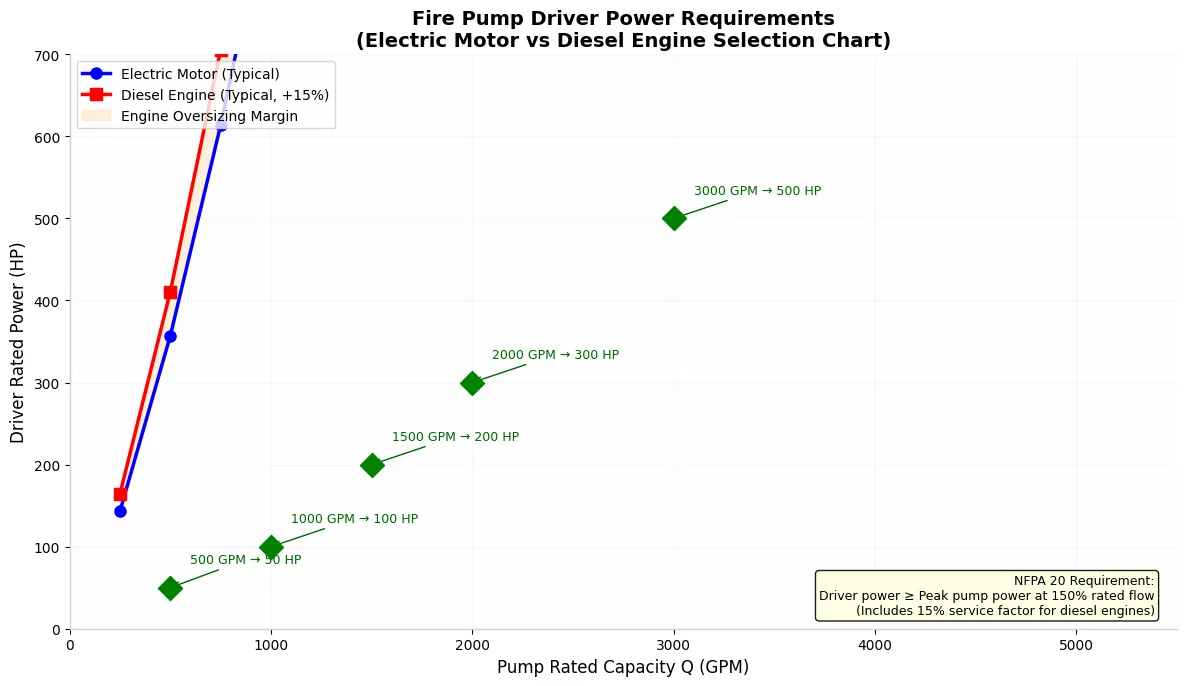

5. Driver Types: Electric Motors and Diesel Engines

5.1 Electric Motor-Driven Pumps

Electric motors are the most common fire pump driver due to their reliability, low maintenance, and automatic starting capability. Key requirements per NFPA 20:

Critical Design Note: NFPA 20 prohibits thermal overload protection on fire pump motors. The pump must be allowed to run even if overheating, because stopping a fire pump during an emergency is more dangerous than motor damage.

5.2 Diesel Engine-Driven Pumps

Diesel engines provide independence from electrical power failures and are required as the sole fire pump driver in many high-hazard occupancies. Key requirements:

5.3 Driver Selection Formula

The minimum driver power rating is:

P_driver ≥ (P_peak / η_transmission) × SF

Where:

• P_peak = Peak pump brake horsepower at 150% rated flow
• η_transmission = Coupling/gear efficiency (typically 0.97–0.99 for direct drive)
• SF = Service factor (1.0 for electric motors, 1.15 for diesel engines)

6. Suction Piping Design and NPSH Analysis

Proper suction piping design is critical to prevent cavitation, which can destroy an impeller in minutes. NFPA 20 contains detailed requirements for suction pipe sizing, configuration, and fittings.

6.1 Suction Piping Requirements (NFPA 20 Section 4.14)

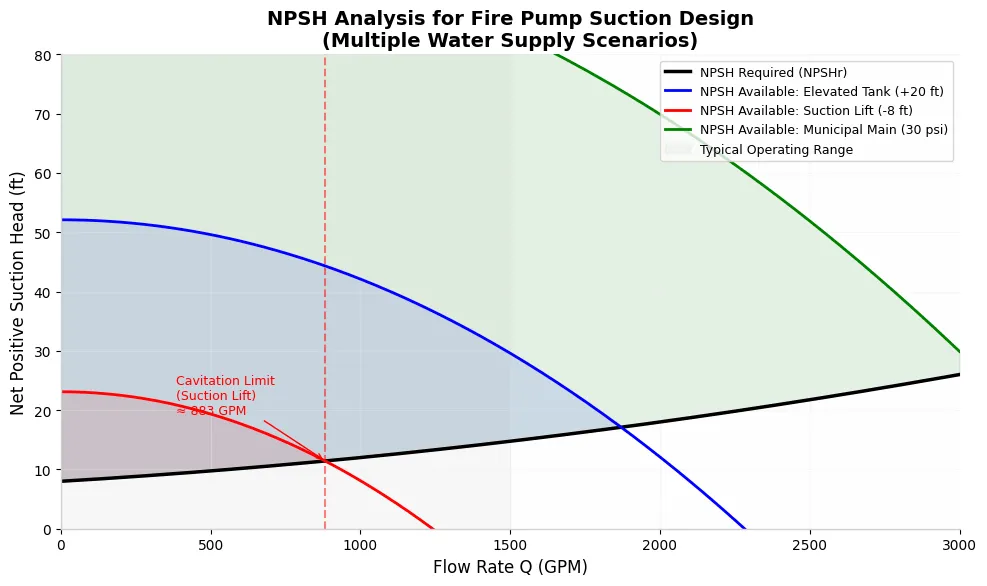

6.2 NPSH Calculation

Net Positive Suction Head Available (NPSH_a) must exceed NPSH Required (NPSH_r) by a safety margin:

NPSH_a = h_atm ± h_static - h_f - h_vp

Where:

• h_atm = Atmospheric pressure head (33.9 ft at sea level)
• h_static = Static suction head (+ if flooded, − if lift)
• h_f = Friction loss in suction piping (ft)
• h_vp = Vapor pressure head (0.8 ft at 70°F)

Example 1: Elevated Tank (Flooded Suction)

• Tank water level: 20 ft above pump centerline
• Suction friction: 2 ft
• NPSH_a = 33.9 + 20 - 2 - 0.8 = 51.1 ft

Example 2: Underground Tank (Suction Lift)

• Water level: 8 ft below pump centerline
• Suction friction: 4 ft
• NPSH_a = 33.9 - 8 - 4 - 0.8 = 21.1 ft

If the pump's NPSH_r at rated flow is 18 ft, the flooded suction installation has a 33.1 ft margin (safe), while the suction lift installation has only a 3.1 ft margin (marginal).

Design Rule: NFPA 20 recommends NPSH_a ≥ 1.3 × NPSH_r for fire pumps. For suction lift applications, vertical turbine pumps are strongly preferred because their impellers are submerged, eliminating suction lift entirely.

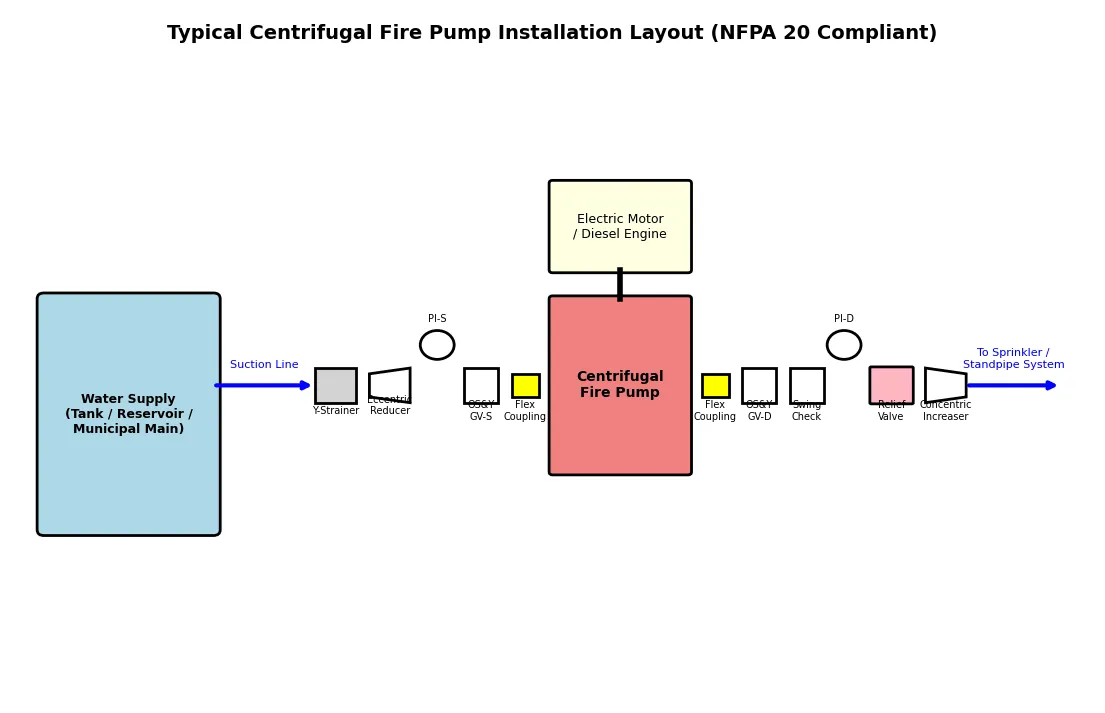

7. Discharge Piping, Valving, and Accessories

7.1 Discharge Component Requirements

7.2 Main Relief Valve Sizing

The main relief valve must be capable of relieving the full churn flow at a pressure not exceeding 140% of the pump's rated pressure. The orifice area is calculated from:

A = Q_churn / (C_d · √(2 · g · ΔP / ρ))

Where:

• Q_churn = Pump flow at churn (typically 5–10% of rated for large pumps)
• C_d = Discharge coefficient (0.6–0.8 for spring-loaded valves)
• ΔP = Pressure differential across valve (psi)
• ρ = Fluid density

In practice, manufacturers provide pre-sized relief valves matched to specific pump models.

7.3 Circulation Relief Valve

A circulation relief valve (minimum ¾ inch NPT) is installed on the pump casing to prevent overheating during churn conditions or low-flow operation. When the pump runs against a closed discharge (churn), all input power converts to heat:

Q_heat = (P_input × 2545) / (c_p × ΔT)

For a 100 HP pump at churn with no circulation:

• Heat input: 254,500 BTU/hr
• Water volume in pump: ~5 gallons
• Temperature rise: approximately 50°F per minute

Without a circulation relief valve, the pump would reach damaging temperatures within 2–3 minutes.

8. Pump Controllers and Automatic Operation

The fire pump controller is the brain of the system, monitoring system pressure and automatically initiating pump startup when required.

8.1 Controller Types

8.2 Starting Sequence

1. Standby: Controller monitors system pressure via pressure transducer or switch.
2. Pressure Drop: When pressure falls to the main pump start setpoint (typically 10 psi below churn pressure), the controller initiates startup.
3. Motor Start: For electric pumps, the contactor closes and the motor accelerates to rated speed within 5–10 seconds. For diesel pumps, the starter cranks the engine, which must reach rated speed within 20 seconds.
4. Running: The pump maintains operation until manually stopped or until the stop pressure is reached (if equipped with automatic stop—rare for main fire pumps).
5. Alarm: All starts, stops, and failures are transmitted to the building fire alarm system.

8.3 Pressure Switch Settings

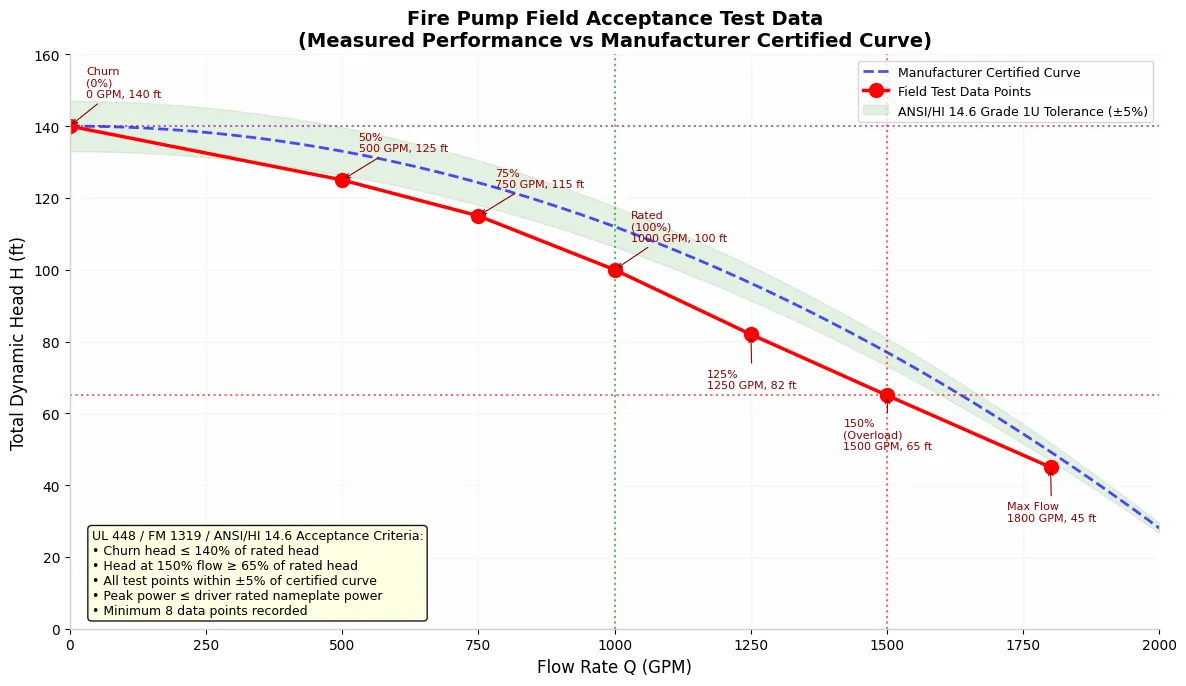

9. Field Acceptance Testing

9.1 Pre-Test Requirements

Before conducting the acceptance test, the following must be verified:

• Suction and discharge piping are complete and properly supported
• All valves are in correct positions (suction open, discharge test header open)
• Controller is programmed with correct pressure settings
• Test header is sized for ≥ 175% of rated pump flow
• Flow measurement device (pitot tube, ultrasonic flowmeter, or calibrated orifice) is available
• Pressure gauges are calibrated within the last 12 months

9.2 Test Procedure

9.3 Documentation

The acceptance test report must include:

• Pump manufacturer, model, serial number, and UL/FM listing numbers
• Driver manufacturer, model, and rating
• Controller manufacturer and settings
• Suction and discharge pressure at each test point
• Flow rate at each test point
• Net pressure (discharge − suction) at each test point
• Motor current or engine RPM at each test point
• Plot of measured points against manufacturer's certified curve
• Certification signatures from installer, owner, and authority having jurisdiction (AHJ)

10. Maintenance and Testing Protocols (NFPA 25)

11. Common Design Errors and Troubleshooting

11.1 Oversized Pump

An oversized pump will meet system demand at a flow rate far to the right of its BEP, operating at low efficiency and high power consumption. It may also exceed the pressure rating of downstream components.

• Diagnostic: At rated system demand, the pump operates at > 125% of its catalog flow point.
• Correction: Trim the impeller or install a bypass line to shift the operating point leftward.

11.2 Undersized Suction Piping

Undersized suction piping creates excessive inlet velocity and friction loss, reducing NPSH_a and causing cavitation.

• Diagnostic: Churn pressure is normal, but pressure drops abnormally rapidly as flow increases; noise and vibration at high flow.
• Correction: Increase suction pipe diameter to match or exceed pump flange size.

11.3 Incorrect Pressure Switch Settings

If the main pump start pressure is set too high, the pump will start on minor pressure fluctuations. If set too low, the system may experience unacceptable pressure dips before pump startup.

• Diagnostic: Frequent pump starts (more than once per week outside of testing) indicate incorrect settings.
• Correction: Recalibrate per NFPA 20 hierarchy: Jockey stop > Main churn + 10 psi > Jockey start > Main start.

11.4 Air in Suction Piping

Air pockets in suction piping cause intermittent flow loss, vibration, and reduced capacity.

• Diagnostic: Erratic pressure gauge readings; pump fails to reach rated flow during testing.
• Correction: Install eccentric reducer flat-side-up; ensure all high points have air release valves; verify suction pipe slopes continuously upward toward the pump.

12. Regulatory Framework and Applicable Standards

13. Advanced Topics

13.1 Multistage Multi-Outlet (MSMO) Pumps

For high-rise buildings with multiple pressure zones, MSMO pumps provide multiple discharge outlets at different pressures from a single pump assembly, eliminating the need for pressure-reducing valves in the system. This simplifies piping and improves energy efficiency in buildings exceeding 20 stories.

13.2 Variable Speed Fire Pumps

Traditional fire pumps operate at fixed speed (typically 1,750 or 3,500 RPM). Variable speed drives (VFDs) are not permitted for main fire pumps per NFPA 20 because they introduce an additional point of failure. However, VFD-controlled jockey pumps are becoming common for energy savings in large systems.

13.3 Seismic and Hurricane Considerations

In seismic zones, fire pumps must be anchored to resist lateral forces calculated per ASCE 7. Flexible couplings must accommodate seismic displacement without leakage. In hurricane-prone regions, diesel engine exhaust terminations must be designed to prevent wind-driven rain ingestion.

14. Summary and Key Takeaways

• Fire pumps are specialized, listed equipment. Only UL-listed or FM-approved pumps may be used in fire protection systems.
• Performance acceptance is binary. The pump must simultaneously satisfy: churn ≤ 140%, rated point ±5%, and 150% flow ≥ 65% of rated head.
• Suction design determines pump life. Proper NPSH margin, straight suction runs, and air-free piping prevent cavitation damage.
• Driver selection includes safety margins. Diesel engines require 15% oversizing; electric motors must run without thermal protection.
• Controllers are life-safety devices. They must start the pump automatically under all emergency conditions and cannot be programmed to stop automatically.
• Testing validates design. Annual full-flow tests and 5-year internal inspections ensure the pump remains capable of meeting its original performance specification.
